Rapid Prototyping 01 May 2017

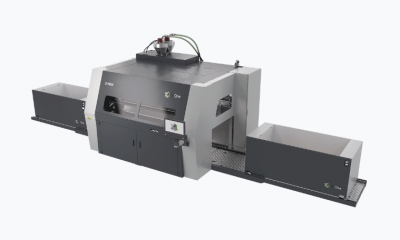

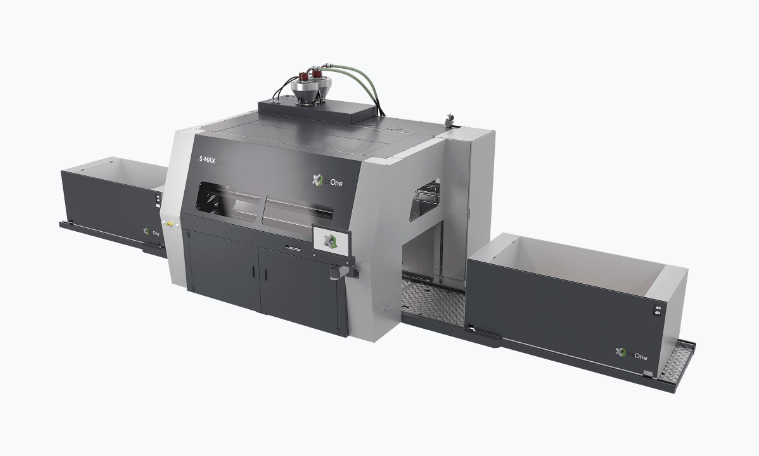

Our New 3 Dimensional Sand Printing Machine

The S-Max® 3D core and sand mold system is ideally suited for sandcasting foundries, creates complex sand cores and molds directly from 3D CAD data, eliminating the need of a physical pattern to create a core or mold. The ability to cast in hours without hard tooling improves the entire casting process chain. Realize new efficiencies with our largest build platform.

  • Build Box 1.800 × 1.000 × 700 mm
  • Build Volume 1260 L
  • Max Build Rate up to 100 l/h (depending on jobbox utilization, sand type, layer height, resolution & environmental conditions)
  • Layer Height 0.26 – 0.38 mm
